Gas Assist Accessories by AEGIS

AEGIS provides every gas assist requirement from full process control and nitrogen generator systems, to accessories to optimize your gas assist process.  Products range from gas assist injectors, both "standard" and custom, high pressure gas lines, injection barrel resin-shutoff valves (hydraulic or non hydraulic), and system components to keep your process running efficiently.  Need an special gas assist injector for you application? We can furnish that quickly and competitively.  Below are our standard gas assisted processing accessories. Call us with your needs!

Gas Assist Accessories Digital Catalog

Click Here to Download in .pdf Format

Need to order it now? For your convenience we accept

Visa, MasterCard, American Express and Discover.

Click here for On-line Discount Pricing Page


Click on the images below for an enlarged view

AEGIS' AGSA-1 Combination Resin Shutoff Valve & Gas Assist Nozzle Adapter. In Stock!

Male end assembles directly to your standard resin injection nozzle turning it into a shutoff valve and gas injection nozzle.  7/8-14 threads male and female end. Uses your current nozzle tip on the female end of the adapter.  No actuation needed; positive cavity pressure following gas injection closes the shutoff devise and keeps resin and gas from returning to the nozzle and molding machine barrel during the gas-packing and cooling cycle.    For through-the-nozzle gas injection molding.

AGSA-1 dimensions

gas assist nozzle adapter



Available only from AEGIS




automatic resin shutoff valve for gas assist molding

AEGIS' SRS-2000Fully Automatic Resin Shutoff Valve



The time tested and proven SRS-2000 automatic resin shutoff valve.  Our non hydraulic and non spring actuated resin shutoff is the most reliable and cost effective resin shutoff in the industry. No signals or actuation required! Hundreds in use for through-the-nozzle or gas pin methods of gas assist molding. A resin shutoff valve is mandatory when injecting gas through-the-nozzle.

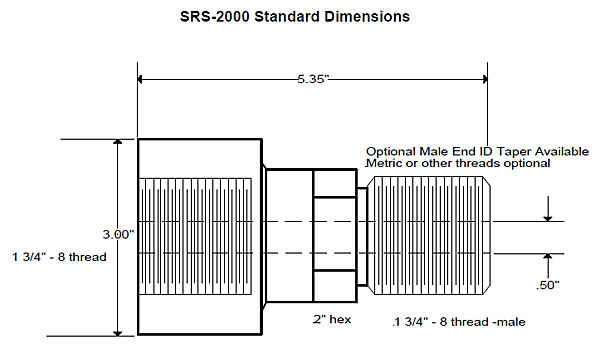

Standard threads 1-3/4"-8 male and female ends, available with standard male end, or, with the "Van Dorn" taper in the I.D. at no additional cost.

Click HERE to download PDF installation, dimensions and operation sheet.



Available only from AEGIS




anti drool nozzle

The JDL Drool Eliminator - for Gas Assisted or Conventional Injection Molding - In stock!

The JDL Drool Eliminator! Save money, down time, messy cleanups! For use with Conventional Molding Processes, Structural foam or Gas Assist when injecting "in article." Click on the image for more information.

The Drool Eliminator uses a very heavy spring-loaded mechanism to prevent nozzle drool. To operate, use the sprue-break function on the molding machine to back off 1/2" from the sprue bushing and the nozzle is closed!

The Drool Eliminator comes with a special tool for opening the valve for purging the barrel. After purging, remove the special tool and you're ready for production.

In-process, the nozzle moves forward to the sprue bushing, opening the valve for resin injection. After resin injection and packing, "sprue break" approximately 1/2" and the nozzle is closed.

Dimensions: 6" x 2.50", with 1 3/4"-8 threads as standard. Available with non standard size molding machine end cap threads for any molding machine.

Effective nozzle drool prevention for any hydraulic, electric, or hybrid injection molding machine.


high pressure gas lines

High pressure (to 10,000 PSI) Hoses - Gas Assist Controller to Injection Mold.

5 ' to 20' lengths, machine and mold connectors in stock!

Finger tip assembly to gas assist controller and mold!

Flexible, convenient, high pressure controller-to-tool gas supply lines, 5, 6, 10, 15, 20 foot length in stock as well as custom sizes. Hoses are rated at 10,000 PSI. Connectors shown connect the hoses to the mold and gas assist controller. Special threads on the connectors and hoses prevent connecting a low pressure rated hose to your gas assist process.

Connectors are available with and without check valves. (Open on mold; check valve option is used on gas assist controllers.) Note that these hoses connect ONLY to the special connectors shown, to assure safe operation.  AEGIS also stocks unions for connecting (2) hoses to extend total length.


resin shutoff nozzle, resin shutoff valve

USN Automatic Gas Assist Resin Shutoff Valve/Nozzle


2 in 1 Gas Assist Nozzle and Resin Shutoff - In stock!


THE latest advance in gas assist shut-off nozzle design. For through-the-nozzle gas injection on 20 ton and up molding machines. Click on the image for a larger image of injection/shutoff nozzle. Call 757-271-9927 for more information. Standard build configuration comes with a 1 3/4 inch - 8 thread male end.  The shutoff valve/nozzle can be used with any thermoplastic material. It requires no additional hydraulics or pneumatics and contains no seals to wear. The USN is disassembled in minutes, for quick and easy maintenance. Heater brands and check valves available.


gas assist nozzle

Gas Assist Ready Injection Nozzles
Require resin shutoff valve for through-the-nozzle operation

- In stock!
The JDL Gas Assist Injection Nozzle provides Class-One performance at an affordable price when injecting gas through-the-nozzle. In stock in 8", 10" and 12" lengths. Gas assist ready. Click on the image for more information.  See our gas assist ball check valve below for affixing a SS gas line to the nozzle.


resin shutoff valve, rotary shutoff valve

The JDL patented and unequaled Rotary Resin Shutoff Valve
The ULTIMATE resin shutoff valve for gas assisted and conventional injection molding!

Click here to download the 4-page color RSOV pdf brochure

- Normally In stock!
The JDL Resin Shutoff Valve-III & IV, hydraulically controlled, designed for fast, positive resin shutoff for gas assist and non-gas assist applications. Model IV is specially designed for use with gas assist molding or high pressures encountered during conventional molding. Simple installation between molding machine barrel end cap and resin, or gas/resin injection nozzle. This design is patented due its unique design and operation. Accept no clone substitutes!


self aligning nozzle tip

The JDL Self Aligning Nozzle Tip
Hardened steel or polished 4140

- In stock!
The JDL Self Aligning Nozzle Tip screws into the end of any standard or gas assist injection nozzle.  When wear occurs, only the spherical tip detail is replaced.  It saves you money while ensuring sprue bushing - nozzle tip alignment. * Compensates for misalignment up to .040" overall travel in all directions.

* Prevents wear on molding machine sled caused by misalignment pressures

* Permits perfect nozzle tip-sprue bushing alignment

* Hardened steel or polished 4140

3-piece assembly screws into the end of any standard injection nozzle. The tip radii can be revised by changing the spherical tip only.

General purpose, nylon and and full taper tips available. Call for more information and for special requirements.


gas assist nozzle check valve

The JDL Patented Check Valve

Part no. AEGIS part no. ACV-02.
Prevents gas and resin from entering nozzle/barrel

- In stock!
The JDL Gas Assist Ball Check Valve, for connection of a 1/8" SS gas line to the gas assist injection nozzle. The "ball check" function efficiently prevents resin and gas from backing into the gas line. For use when injecting gas through-the-nozzle.
